U of MN Supercomputing Institute Volume 1
This is the first volume of pictures from the University of Minnesota
Supercomputing Institute. These were taken 3/17/2000
Description |
Small version of picture. Click picture for larger version. |

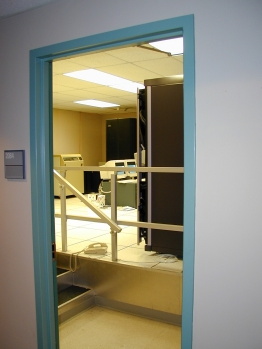

We recently moved our Origin systems in to a different machine room. This
room has been a machine room for a long time but we were recently given
access to the space. Here we are entering the Origin machine room.
Note that there are steps there - there are double doors on the other
side of the room that does not have stairs. So it is possible to get
machines in there :-)
Large version of this picture
|
|

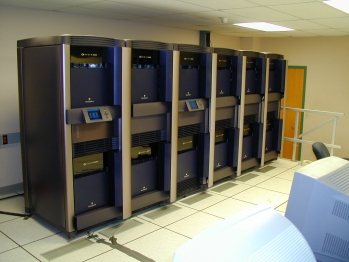

The four racks on the right side make up our 62-processor Origin2000
System with R12000 processors. The two racks on the left, that look
slightly different, make up the older 8-processor and 24-processor
systems. These two systems have R10000 processors.
Large version of this picture
|
|

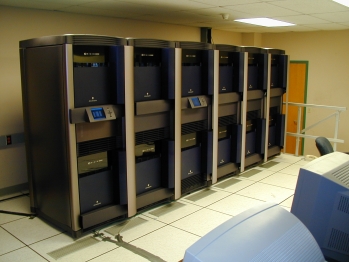

A different view.
Large version of this picture
|
|

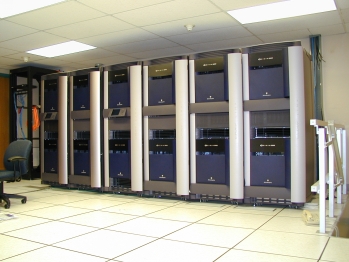

Another view.
Large version of this picture
|
|

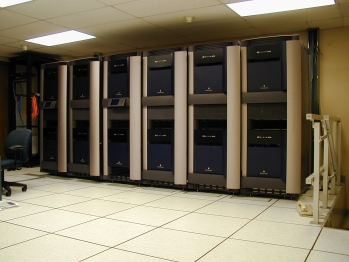

Another view.
Large version of this picture
|
|

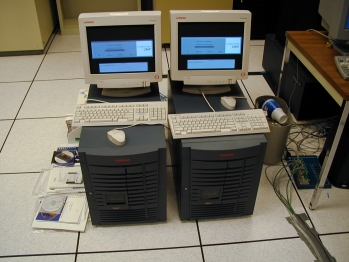

We recently aquired these two Alpha ES40 servers. The two servers are
linked together with a Memory Channel interconnect. We are currently
evaluating this system. They are extremely fast!
Large version of this picture
|
|

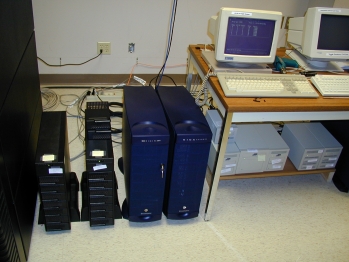

This photo is from a smaller server room. On the left, you see two
RAID units. Two the right, you see two purple boxes. This is a
2-processor Origin200 Gigachannel. It is the primary file server for
one of our graphics labs. To the right, you see a disk farm for this
server. :-)
Large version of this picture
|
|
This picture shows a 1-processor Origin200 with an R10000 processor. It
was our old file server and now is our mail server.
Large version of this picture
|
|

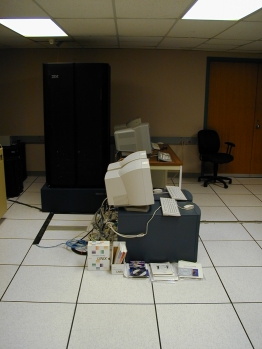

This is another view of the Origin2000 machine room (from earlier in this
gallery). You can see this room has one IBM SP frame. It contains 4
4-processor Silver Nodes with PowerPC processors.
Large version of this picture
|
|
